2" Two Hole Steel Rail End For Chain Link Fences
2" Two Hole Steel Rail End For Chain Link Fences
Couldn't load pickup availability

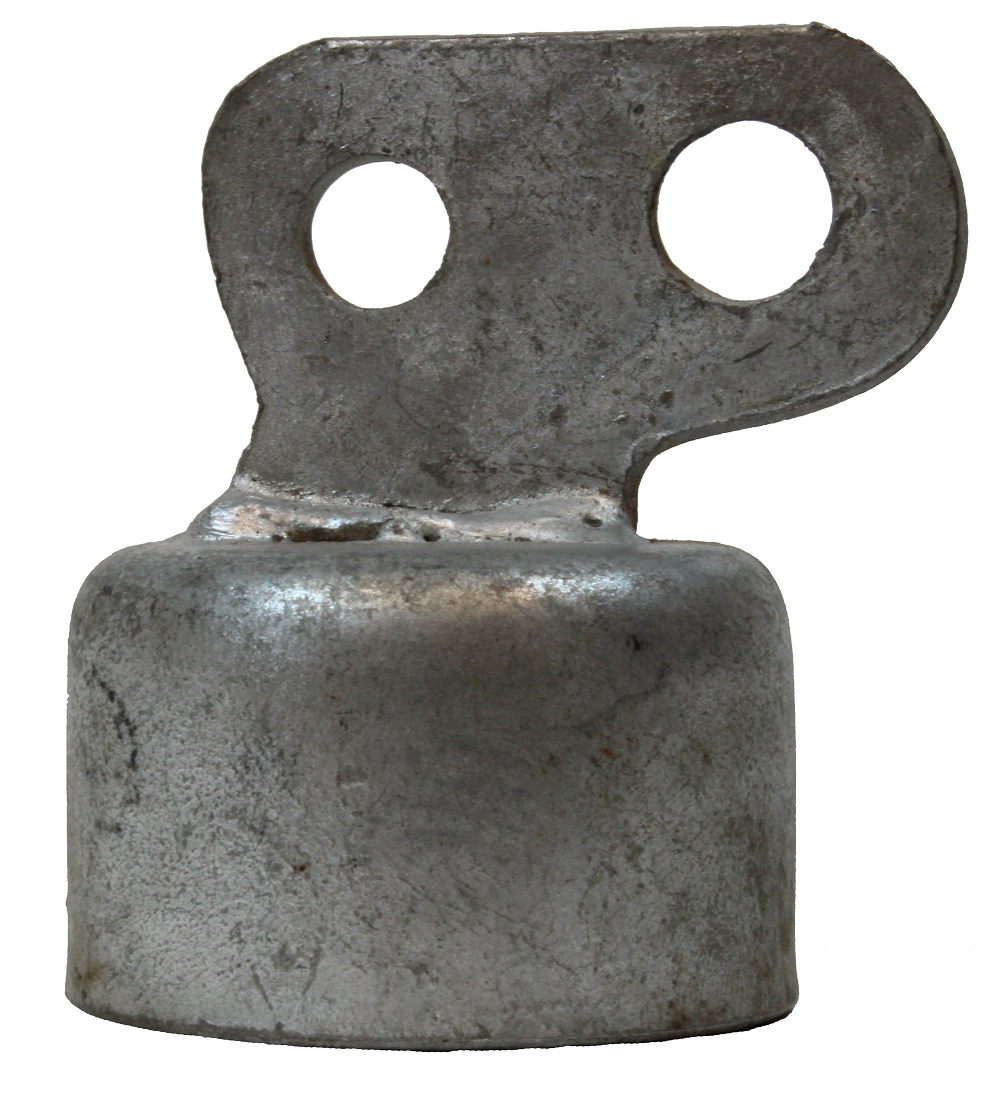

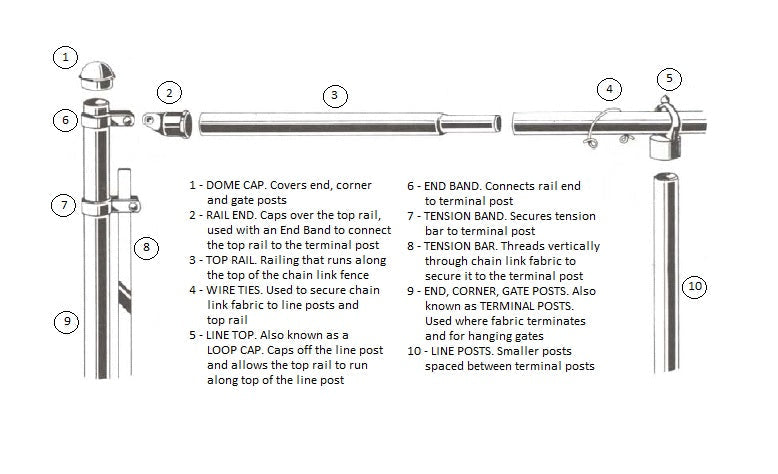

Rail ends, sometimes known as rail end caps or rail end cups, cap off the end of a top rail, mid rail, or bottom rail, and attach to a terminal post with an end band and nut/bolt.
- Made of durable steel
- Two holes allow for brace/truss attachment
- Fits 2" outside diameter rails
- Maintenance free
- Corrosion resistant
Details
How the part fits? A 2” rail end has the inside diameter of 2”. It fits over 2” O.D. top rail.
Where is it installed? A 2” rail end is installed at the end of the top rail. You will need a rail end at every point of termination.
How many do you need? For every stretch of chain link fence, from terminal post to terminal post you will need two, 2” rail ends.
Specifications
2" rail size; .41lbs.
How To

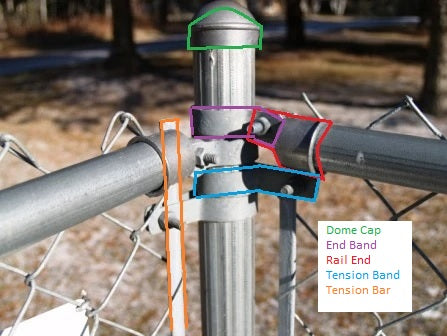

The 2” rail end is attached to an end band; the end band is the size of the diameter of the terminal post. The 2” rail end is attached to the end band by sliding the rail end in between the tangs of the end band. You will then slide the 5/16” x 1-1/4” bolt through the end band and rail end.
