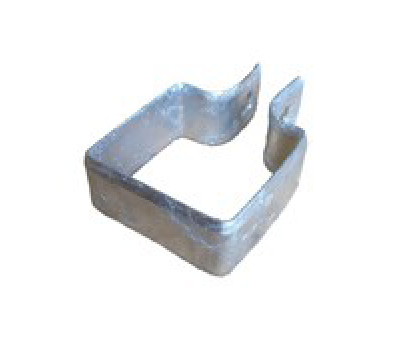

Square End Band 4" For Chain Link Fences

This end band is used on a galvanized chain link fence.  This is a 4" Square End Band, or also known as a brace band.  This Does Not Include Nut & Bolt (Part # 11170).

Details

How the part fits? A 4” square end bands are designed to go over 4” square terminal posts.

Where is it installed? A 4” square end band is installed to support the rail end at the top of the fence. The 4” square end band will be placed adjacent to the rail end on the 4” square terminal post.

How many do you need? You will need (1) 4” square end band per termination of fence. For every full stretch of fabric, you will need (2) end bands for your (2) terminal posts.

Specifications

4" post size, .27lbs

Instructions

4” square end bands should be installed after you install your tensions bands. Your end band will slide over your 4” square terminal post adjacent to your rail end. You will then slide your rail end in between the tangs of the end band and place a 5/16” x 1-1/4” carriage bolt through the band and rail end and tighten the nut.
