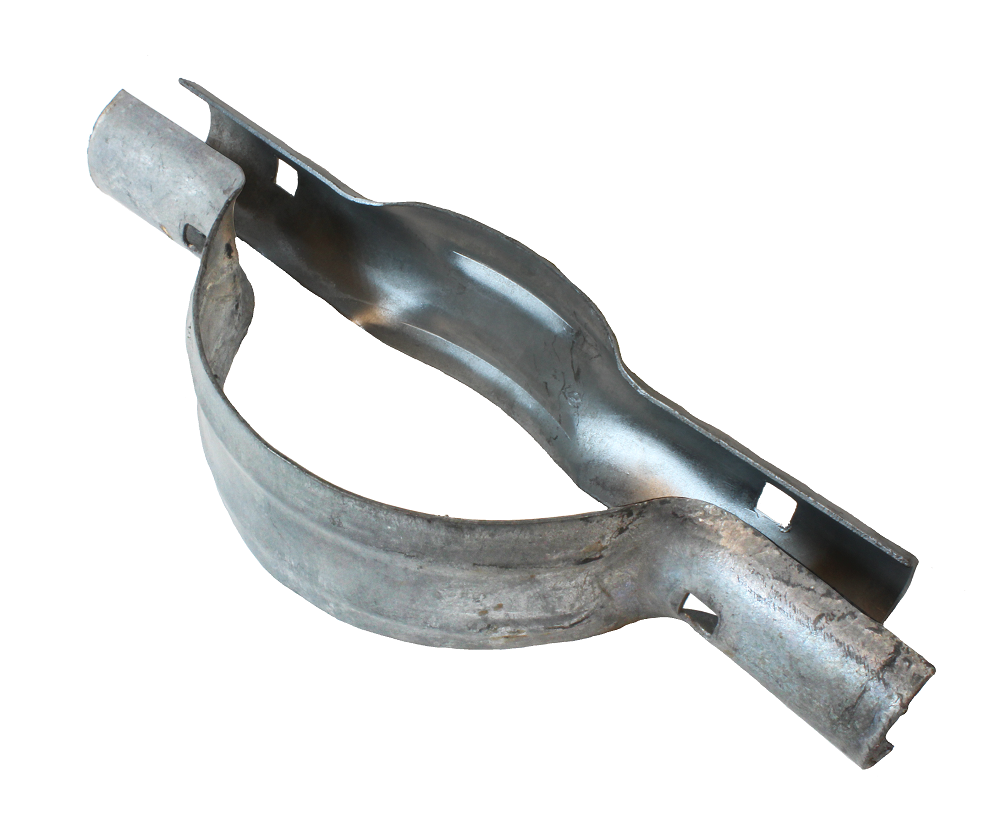

6-5/8" x 1-5/8" Line Rail Clamp For Chain Link Fences

Galvanized for extra corrosion resistance, this 6-5/8” x 1-5/8” line rail clamp, otherwise known as a boulevard clamp, will add extra support to your chain link fence. This clamp is made to hold a post and rail in a + or x formation.

• Made of sturdy steel
• Rust resistant
• Made for 1-5/8” rails

Details

How the part fits? A 6-5/8” x 1-5/8” line rail clamp is designed so that the center of the line rail clamp can fit around a 1-3/8” line post. A horizonal 1-3/8” rail will then be inserted into the clamp from both ends.

Where is it installed? A 6-5/8” x 1-5/8” line rail clamp is designed to go on a line post for installation of a mid-rail or bottom rail of a chain link fence or kennel.

How many do you need? You will need to take the amount of horizonal rails by the amount of line post you have. For example: if you want both middle rail and bottom rail and you have 5-line post you will need (10) 1-3/8” x 1-3/8” line rail clamps.

Specifications

Fits 6-5/8” posts; 1.9996 lbs.

How To

How to install? A 1-3/8” x 1-3/8” line rail clamp is a two-part clamp with both pieces wrap around the line post. The rails will then be inserted into the ends of the clamp. A 5/16” x 2-1/2” carriage bolt will go through the two holes and then tighten with nut.
