2" x 1-5/8" Black Barbed Wire Arm For Chain Link Fences

Fences topped by barbed wire remains a common installation at power plants, police stations, correctional facilities, and other venues needing high security. For fences that use 2" posts and 1-5/8" rails, look no further than this steel 3 strand barbed arm, available here at Shop Chain Link. Fitting atop your post, with a circular hole to accommodate your fence rails, this arm has been fabricated with an angular build. This way, the barbed wires project outward from the top of the fence, making it even more difficult for intruders and/or inmates to climb over. (As does the additional fence height provided by this fitting.) Three notches built into the arm secure the wires in place, and the arm's galvanized steel build provides superior rust resistance. This barbed wire arm features black vinyl coating. If you have a chain link fence similarly coated this color, this arm is an ideal purchase.

• Post size: 2”
• Rail size: 1-5/8”
• Black vinyl coating
• Rust resistant

Details

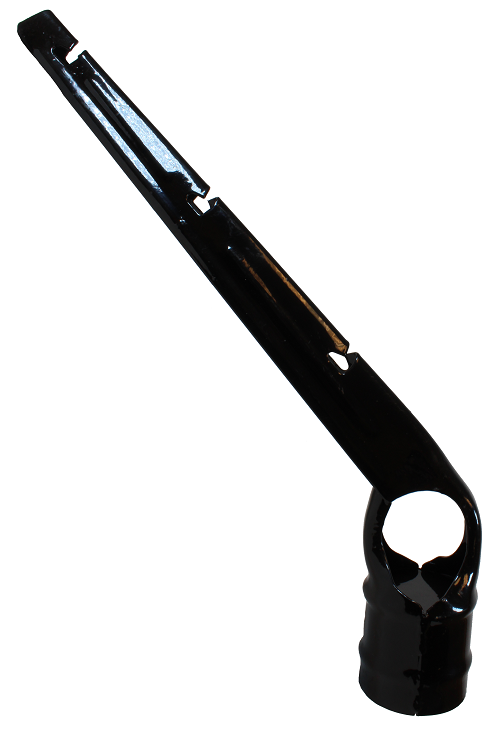

How the part fits? A 2” x 1-5/8” 45-degree barbed arm slides of over a 2” line post.

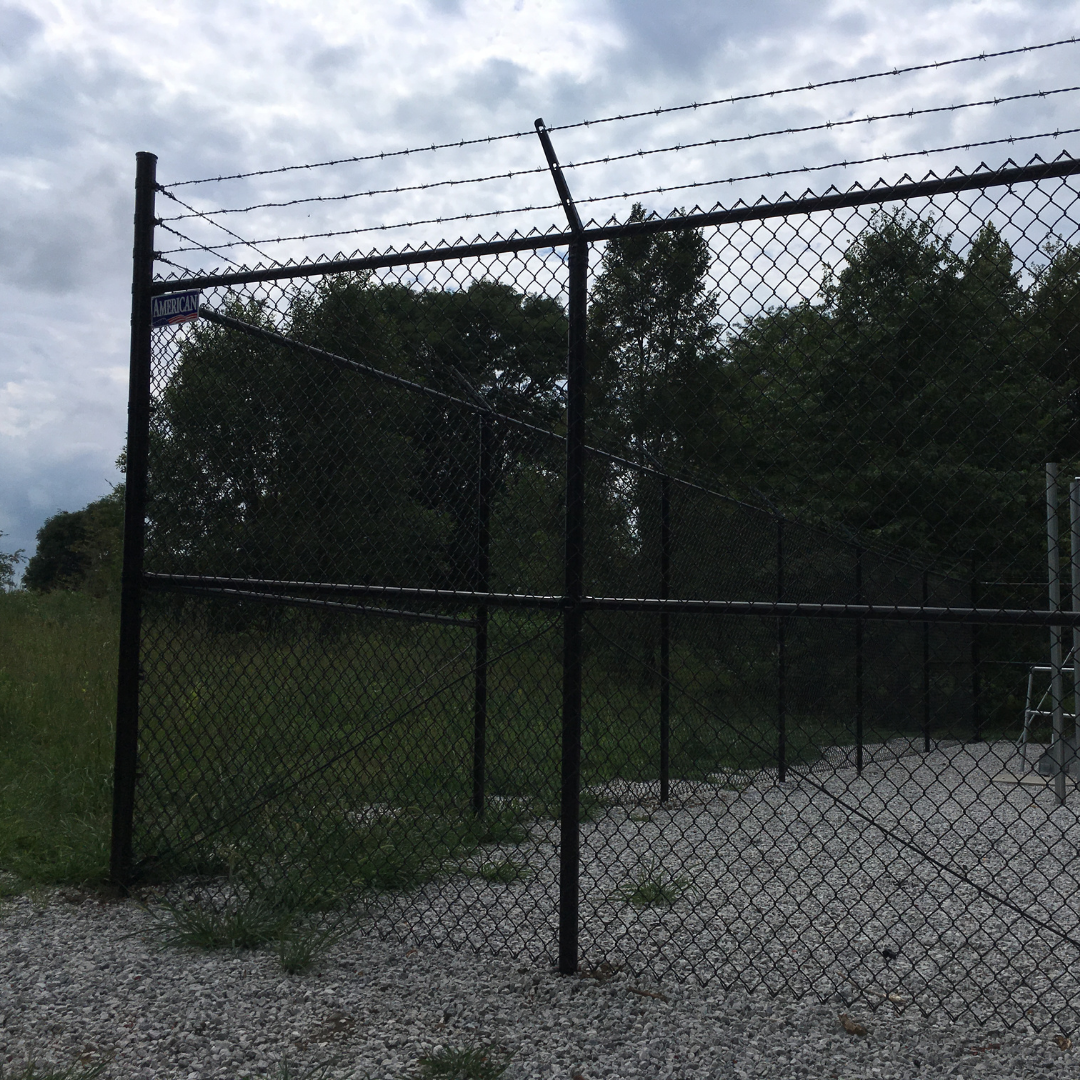

Where is it installed? A 2” x 1-5/8” 45-degree barb arm is installed on all of your 2” line post when your application requires barbed wire. There will be a hole in the barbed arm to slide your 1-5/8” top rail through. Typically, your 45-degree barbed arm will be placed facing outside of your fence to provide more security.

How many do you need? You need one, 2” x 1-5/8” 45-degree barbed arm per line post.

Specifications

Fits 2" post and 1-5/8" top rail; 1.45lbs.

How To

A 2” x 1-5/8” 45-degree barbed arm is installed by sliding it over your 2” line post. Once you reach a terminal post you will need to tighten the barbed wire by placing three additional 1-5/8” end bands on the extended terminal post.
