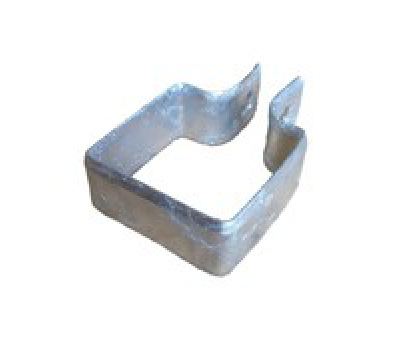

3" Galvanized Steel Square End Band For Chain Link Fences

Our 3” Steel Square Rail End Band works just like a round brace band but with a shape that works specifically for square posts. Made of sturdy galvanized steel, these brace bands have superior corrosion resistant. Secures end caps to terminal posts

• Versatile
• Attaches barb wire and tension wire to end posts
• Doesn’t include bolts and nuts; part #11170
• Also called a square brace band
• Made for square 3” tubing

Details

How the part fits? A 3” square end bands are designed to go over 3” square terminal posts.

Where is it installed? A 3” square end band is installed to support the rail end at the top of the fence. The 3” square end band will be placed adjacent to the rail end on the 3” square terminal post.

How many do you need? You will need (1) 3” square end band per termination of fence. For every full stretch of fabric, you will need (2) end bands for your (2) terminal posts.

Specifications

3" post size, .22lbs

Instructions

3” square end bands should be installed after you install your tensions bands. Your end band will slide over your 3” square terminal post adjacent to your rail end. You will then slide your rail end in between the tangs of the end band and place a 5/16” x 1-1/4” carriage bolt through the band and rail end and tighten the nut.
