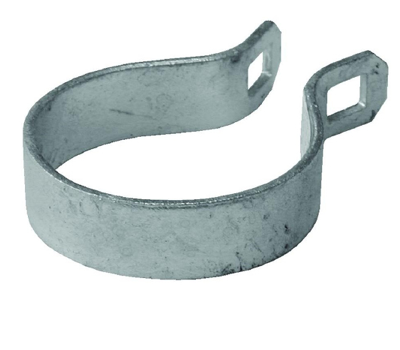

3-1/2" Galvanized Steel End Band For Chain Link Fences

Steel end bands—also known as brace bands—are designed for installing chain link fences. Use them to attach bottom tension war, horizontal rails, and barbed wire to terminal posts. (Terminal posts include gate posts and end posts.)

Prior to installing the end bands, verify that your chain link fence has been fitted with tension bands. Then, install by slipping the end brand's brace over the terminal post adjacent to the rail end. Now slide the end rail between the end band's tongs. The last step is to use a carriage bolt (sold separately) to secure it.

This 3-1/2" Galvanized Steel End Band is rust resistant, as it has been fashioned from galvanized steel.

• Made for 3-1/2” diameter tubing
• Galvanized heavy steel
• Nuts and bolts not included; part #11170
• Rust and corrosion resistant
• Versatile

Details

How the part fits? A 3-1/2” end bands are designed to go over 3-1/2” terminal posts

Where is it installed? A 3-1/2” end band is installed to support the rail end at the top of the fence. The 3-1/2” end band will be placed adjacent to the rail end on the 3-1/2” terminal post.

How many do you need? You will need (1) 3-1/2” end band per termination of fence. For every full stretch of fabric, you will need (2) end bands for your (2) terminal posts.

Specifications

3-1/2" post size, .27lbs

Instructions

3-1/2” end bands should be installed after you install your tensions bands. Your end band will slide over your 3-1/2” terminal post adjacent to your rail end. You will then slide your rail end in between the tangs of the end band and place a 5/16” x 1-1/4” carriage bolt through the band and rail end and tighten the nut.
