1-5/8" x 1-3/8" End Rail Clamp For Chain Link Fences

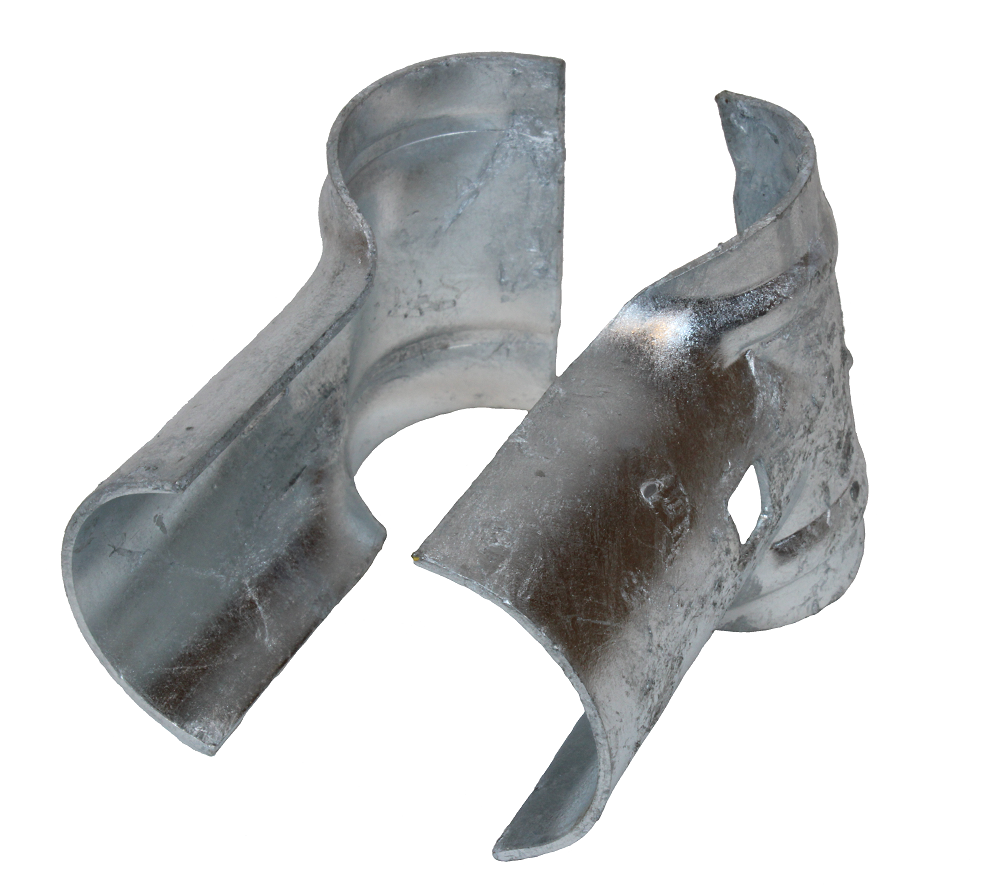

The 1-5/8” x 1-3/8” End Rail Clamp is essential for the safe construction of backstops, ballfield fences, and outdoor dog kennels: used to secure two pieces of fence piping in a T-shaped joint. This clamp comes in two identically shaped halves for easy assembly. To assemble, enclose the shorter “arm” of the clamp around the center of a pipe. Next, gently work the end of the second pipe into the clamp's longer “arm," stopping just beneath the square-shaped hole in the arm’s center. Now take a carriage bolt (sold separately) and slip it through the hole and out the other side. Secure using a nut; this will tighten the clamp pieces together and, with them, the two pieces of pipe.

This chain link fence fitting is composed of galvanized steel for extra rust resistance and longevity. Resilience to corrosion means your fence will be able to withstand the adverse effects of precipitation, making it particularly effective as a fitting for outdoor sports fencing.

• Rust-resistant
• Carriage nut and bolt sold separately, part 11171


Due to minor manufacturing differences, actual product may vary slightly from pictures shown

Details

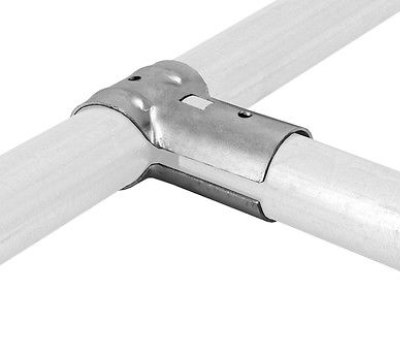

How the part fits? The clamp consists of 2 galvanized steel pieces that sandwich two pieces of pipe in a T joint.

Where is it installed? End rail clamps can be used to secure a bottom rail or mid-rail to a chain link fence. Commonly you will see end rail clamps used on backstops, baseball field fencing, tennis court fencing, and outdoor dog kennels.

How many do you need? Each clamp consists of 2 pieces that together sandwich one T joint. Typically you will need two clamps per post-to-post stretch of fence.

Specifications

Fits 1-5/8" outside diameter post and 1-3/8" outside diameter rail. .44 lb.

Instructions

Placing one piece of the clamp on either side of the T-joint, secure the clamp in place using a nut/bolt (sold separately, part 11171) for added strength and stability to your fencing project.
