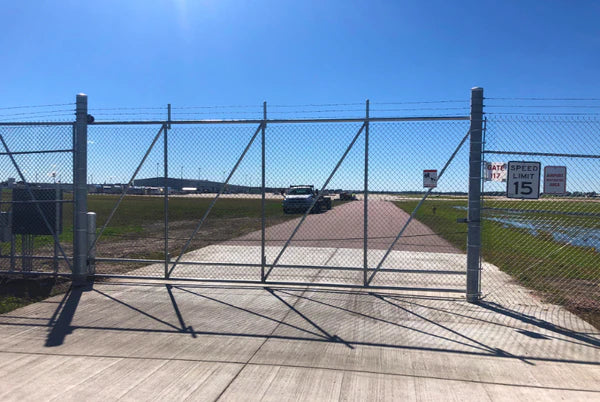

The End-All Guide to Cantilever Gates for Chain Link Fences
A cantilever gate is a type of sliding gate that is supported and operated by a counterbalance mechanism rather than relying on a track or wheels on the ground. It is designed to provide a smooth and efficient operation while requiring minimal space for installation. These barriers are very commonly installed on chain link fences, due to their dependability and because they can be manufactured to match the fence style. Here's some information about chain link cantilever gates and their parts:
- Gate Structure. Cantilever gates consist of a main gate panel that spans the opening and is supported by a horizontal beam called a cantilever roller. This roller is mounted to a supporting post or structure on one side of the gate.
- Cantilever Roller. The cantilever roller is the key component of the gate mechanism. It is usually a steel or aluminum beam with a series of sealed ball bearings or roller wheels. The roller is designed to support the gate panel and allow it to slide smoothly along the gate opening.
- Counterbalance System. Cantilever gates utilize a counterbalance system to ensure smooth operation. This system typically includes a counterbalance weight or weights that are connected to the gate panel through a series of cables or chains. The counterbalance helps to offset the weight of the gate and reduces the effort required to open and close it.
- Guide Rollers. Guide rollers are used to stabilize the gate and keep it aligned during operation. They are mounted on the bottom of the gate panel and run along a ground track or guide rail. Guide rollers help to prevent the gate from swinging or sagging as it slides open or closed.
- Gate Control. Cantilever gates can be controlled manually or automated. Manual operation involves using a handle or lever to push or pull the gate along the opening. Automated systems use motors, gears, and control panels to open and close the gate automatically. Automated cantilever gates can be operated through various means such as keypads, remote controls, or intercom systems.
- Safety Features. Cantilever gates often incorporate safety features to prevent accidents or damage. These can include safety loops or sensors that detect obstructions and stop the gate from closing, emergency release mechanisms, and warning signs or lights.
- Gate Materials. Cantilever gates can be constructed using various materials depending on the desired aesthetic and functionality. Common materials include steel, aluminum, and wrought iron. The choice of material depends on factors such as strength, durability, and design preferences.
Cantilever gates are commonly used in commercial, industrial, and residential settings where space is limited or where a smooth and reliable gate operation is desired. They offer a practical and efficient solution for securing entrances while maintaining a visually appealing appearance.
